ISM3600-FA
The Essegi Automation/JUKI FA system represents a second-generation automated material handling system, an evolution of Essegi’s industry-leading design. Its core is the enhanced ISM3600 storage tower, which incorporates an automatic door and material conveyor.
The ISM3600 FA system seamlessly integrates with existing Essegi/JUKI storage towers. By using the same server, software, and interfaces as the existing towers, the FAMR system ensures a smooth transition for users.
Its robust ERP/MES interconnection capabilities prioritize efficiency by reducing duplicate data entry, minimizing errors, and optimizing material handling processes.
[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”ISM3600-FA” sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” global_custom_title=”ISM3600-FA” admin_label=”Social Sharing Buttons Maker” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” z_index=”99999″ custom_css_free_form=”selector{|| margin-top:1% !important;|| vertical-align:middle !important;|| float: right !important; ||}” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_divider color=”gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00″ _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”||||false|false” custom_padding=”||||false|false” global_colors_info=”{%22gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00%22:%91%22color%22%93}”][/et_pb_divider][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” custom_css_free_form=”
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
” locked=”off” global_colors_info=”{}”][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]
[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” background_enable_image=”off” background_size=”contain” custom_padding=”||||false|false” global_colors_info=”{}”]
- Compatible with autonomous mobile robots (AMR).
- Inventory control with minimum and maximum level management.
- Hands-free automatic lift gate.
- Automatic recognition and management of all case formats.
- ESD certification and controlled humidity environment.
- High-resolution camera for label reading.
| Technical Data | ISM3600 FA |
| Dimensions |
Width = 2,520 m / 8,27 ft Depth = 1,450 m / 4,76 ft |
| Min Height (for transport) | 2,35 m / 7,7 ft |
| Operative Height | 2,40 m, adjustable up untill 2,60 m (7,9 / 8,5 ft) |
| Weight | 1000 kg (empty) – 1500 kg (full cases) |
| Power consumption |
Average 0,2 KWh – max. 0,4 KWh Average 0,4 KWh – max. 2 KWh |
| Operating system |
Microsoft Win 7 / Win 8 / Win 10 Microsoft Win Server 2008 / 2012 |
| Humidity control | Powerful forced air dehumidiers |
| Monitor | Touch Screen |
[/et_pb_tab][et_pb_tab title=”Additional Information” _builder_version=”4.24.2″ _module_preset=”default” background_enable_image=”off” background_size=”contain” custom_padding=”||||false|false” global_colors_info=”{}”]
| Versions |
ISM3600 FA |
|
ISM 3600 – 7” |
3624 reels* 7” 8 mm |
| ISM 3600 – 7” + 15” | 1912 reels 7” 8mm + 445 reels 15” 8mm |
| ISM 3600 – 15” | 899 reels 15” 8mm |
[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner admin_label=”ISP200″ module_id=”model1″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiJmMGMyNTc1MS1jOTFkLTQxNTItYjIxZS00NGZkM2YwODIzNjMiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJpc3AyMDAwIiwiYWRtaW5MYWJlbCI6ImlzcDIwMDAtdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ admin_label=”Column” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/05/Intelligence-storage.webp” title_text=”Intelligence storage” align=”center” module_class=”img-product” _builder_version=”4.24.2″ _module_preset=”default” display_conditions=”W10=” custom_padding=”|3%||3%|false|false” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” locked=”off” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font=”||||||||” text_font_size=”80%” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}” global_colors_info=”{}”]
ISP2000
The intelligent solder paste storage machine automates material input and output. It monitors each bottle’s status (storage time, shelf life, brand, type). Through scheduling, it retrieves material from cold storage, heats and mixes it, and displays the status on the interface. It also alerts operators when material is near expiration or expired date.
[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”ISM3600-FA” sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” admin_label=”Social Sharing Buttons Maker” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” z_index=”99999″ custom_css_free_form=”selector{|| margin-top:1% !important;|| vertical-align:middle !important;|| float: right !important; ||}” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_divider color=”gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00″ admin_label=”Divider” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”||||false|false” custom_padding=”||||false|false” global_colors_info=”{%22gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00%22:%91%22color%22%93}”][/et_pb_divider][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” custom_css_free_form=”
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
” locked=”off” global_colors_info=”{}”][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]
[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” background_enable_image=”off” background_size=”contain” custom_padding=”||||false|false” global_colors_info=”{}”]
- The machine can comply with the storage of common brand welding paste ( 500 g / bottle ).
- The machine has automatic heating module, automatic mixing module, automatic storage module, automatic input and output storage module, barcode identification module.
- The machine can automatically control the temperature in the range of 0 to 10 degrees, the temperature can be configured and the precision can reach ± 1 degree.
| Technical Parameter | Standard |
| Model No. | ISP2000 |
| Dimension | 940L * 1750W * 1920H |
| Power specifications. | 220V / 50HZ |
| Net weight | 1400KG |
| Applicable paste welding specifications | Diameter less than or equal to 62 mm, height less than 80 mm, 500G / bottle |
| Defeat | The input storage time is less than 15 s and the output storage time is less than 10 s |
| Storage capacity | 324 bottles |
| Warm-up capacity | 66 bottles |
| Materials input | Entry cache 11 bottles |
| Materials output | Entry and exit separately. |
| Automatic mix | 1000R / MIN revolution Rotation greater than 200R / MIN |
[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner admin_label=”ISP200″ module_id=”model1″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiJmMGMyNTc1MS1jOTFkLTQxNTItYjIxZS00NGZkM2YwODIzNjMiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJpbXMiLCJhZG1pbkxhYmVsIjoiaW1zLXVybC1wYXJhbWV0ZXIiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn1d” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ admin_label=”Column” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/12/ims-juki.webp” title_text=”ims-juki” align=”center” module_class=”img-product” _builder_version=”4.24.2″ _module_preset=”default” display_conditions=”W10=” custom_padding=”|3%||3%|false|false” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” locked=”off” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font=”||||||||” text_font_size=”80%” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}” global_colors_info=”{}”]
IMS
Transform your material handling process with IMS Intelligent Storage. Designed to elevate productivity, it automates incoming goods management, minimizes human errors, and ensures seamless integration with your existing systems. By simplifying workflows and enhancing accuracy, this solution enables faster operations and improved inventory control, allowing your team to focus on what truly matters: delivering excellence.
[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”IMS” sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” admin_label=”Social Sharing Buttons Maker” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” z_index=”99999″ custom_css_free_form=”selector{|| margin-top:1% !important;|| vertical-align:middle !important;|| float: right !important; ||}” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_divider color=”gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00″ admin_label=”Divider” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”||||false|false” custom_padding=”||||false|false” global_colors_info=”{%22gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00%22:%91%22color%22%93}”][/et_pb_divider][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” custom_css_free_form=”
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
||
” locked=”off” global_colors_info=”{}”][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]
[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” background_enable_image=”off” background_size=”contain” custom_padding=”||||false|false” global_colors_info=”{}”]
-
Feature 1: Speeds up material registration and reduces operator errors
Barcodes on incoming material are scanned and all important data such as part number, quantity, lot code, etc. is locatedand transferred to the item s record in the database. Rules to handle non-standard barcodes are easy to create as needed.Operator errors are eliminated because all barcodes are identified and scanned in a single image, resulting in faster, moreaccurate labeling of reels. Optionally, a connection to ERP can compare the items received to packing lists or POs to furtherenhance the benefits by combining receiving and labeling into one step
-

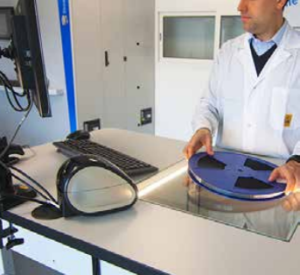

Feature 2: Connection to ERP/MES to share new reel data

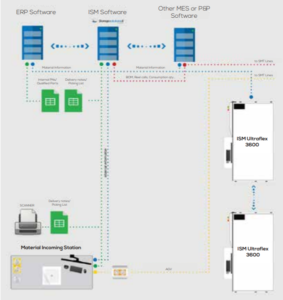

The connection with other systems (ERP, MES, Pick and Place, etc) is possible thanks to the API interface that allows anysoftware to communicate and receive information from the Incoming Material Station Automatic file sharing with othersoftware is also possible.
-
Feature 3: Automated receiving and barcode labeling
The camera and software are able to recognize, parse and store any 1D/2D code on the top of the reels. The software isset with standard rules* used by most components suppliers to label their products (Available Field: Part number, Unique ID,Case format, Quantity, Bin, Date code, MSL, Manufacture PN, Lot number, Expiring date, Supplier, Order ref., Notes field,custom field).
Any out-of-standard label can be easily read by setting customized rules as long as the codes contain a recognizable indicator(for example: Q2000, “Q” standing for quantity).
-

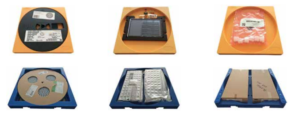

Feature 4: High res camera finds relevant barcodes on a wide variety of reels
| Technical Parameter | IMS |
| ESD Table | ✅ |
| Touch screen, keyboard, mouse | |
| 20 MP high resolution camera | |
| Label printer | |
| 1D/2D barcode scanner | |
| PC i7, 8GB RAM 256 GB | |
| Dimensions | Width = 1,6 m / 5.25 ft Depth = 0,8 m / 2.62 ft |
| Operating Height | 1,1 m (3.28 ft) |
| Weight | 101 Kg – 222.67 Kg (Full cases) |
| Power consumption | 100-240V – Imax: 5A – Frequency 50-60 Hz |
| Operating system | Microsoft Win 10 |
| Software Console | ✅ |
| Halcon 1D-2D library | |
| Auto-Incoming software | |
| Picture traceability option | |
| Part number control | Option |
| Delivery note matching | Option |
[/et_pb_tab][et_pb_tab title=”Software Options” _builder_version=”4.24.2″ _module_preset=”default” background_enable_image=”off” background_size=”contain” custom_padding=”||||false|false” global_colors_info=”{}”]
-
Internal PNs/Qualified Parts Checking Module
With this option it is possible to load the list of approved part numbersso that if the software detects a part number that is not in the list, thesystem can warn the operator and prevent the initialization of thematerial until the new part number has been approved.
-
Feature 2: Connection to ERP/MES to share new reel data
With this option it is possible to check-out automatically all the materiallisted in the delivery note or picking list, to make sure all material statedhas arrived, and to recognize any exceeding material.This option includes the installation of a second monitor were the deliverynote information are shown and the checking process is confirmed.
-
Packing list/Delivery Note Checking Module
The camera and software are able to recognize, parse and store any 1D/2D code on the top of the reels. The software isset with standard rules* used by most components suppliers to label their products (Available Field: Part number, Unique ID,Case format, Quantity, Bin, Date code, MSL, Manufacture PN, Lot number, Expiring date, Supplier, Order ref., Notes field,custom field).
Any out-of-standard label can be easily read by setting customized rules as long as the codes contain a recognizable indicator(for example: Q2000, “Q” standing for quantity).
[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner column_structure=”1_2,1_2″ admin_label=”Botones prev next” module_class=”two-col-mob” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_column_inner type=”1_2″ saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjU5OSJ9fQ==@” button_text=”Conformal AOI” disabled_on=”on|on|on” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ button_icon=”4||divi||400″ button_icon_placement=”left” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;|| margin-right:50%;||}” disabled=”on” global_colors_info=”{%22gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291%22:%91%22button_text_color%22,%22button_text_color%22,%22button_text_color%22,%22button_text_color%22%93}”][/et_pb_button][/et_pb_column_inner][et_pb_column_inner type=”1_2″ saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjM0MiJ9fQ==@” button_text=”Printers” button_alignment=”right” disabled_on=”off|off|off” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;|| margin-left:50%;||}” locked=”off” global_colors_info=”{%22gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291%22:%91%22button_text_color%22,%22button_text_color%22,%22button_text_color%22%93}”][/et_pb_button][/et_pb_column_inner][/et_pb_row_inner][/et_pb_column][et_pb_column type=”1_4″ admin_label=”Columna” _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/03/jukilogo2.png” title_text=”Juki” align=”center” disabled_on=”off|off|off” admin_label=”Image” _builder_version=”4.24.2″ _module_preset=”default” width=”100%” display_conditions=”W3siaWQiOiIyNDJjM2FmYy1jMjRmLTQ1OGItYTNlOS0xNzE5NDVmZmRhMTkiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJpc20zNjAwLWZhIiwiYWRtaW5MYWJlbCI6ImlzbTM2MDAtZmEtdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifSx7ImlkIjoiYzRiOTBmM2QtODRiMS00ODBkLTliM2UtZWUyOWY2NmE5MDlhIiwiY29uZGl0aW9uIjoidXJsUGFyYW1ldGVyIiwiY29uZGl0aW9uU2V0dGluZ3MiOnsic2VsZWN0VXJsUGFyYW1ldGVyIjoic3BlY2lmaWNVcmxQYXJhbWV0ZXIiLCJ1cmxQYXJhbWV0ZXJOYW1lIjoibW9kZWwiLCJkaXNwbGF5UnVsZSI6ImVxdWFscyIsInVybFBhcmFtZXRlclZhbHVlIjoiaW1zIiwiYWRtaW5MYWJlbCI6Imltcy11cmwtcGFyYW1ldGVyIiwiZW5hYmxlQ29uZGl0aW9uIjoib24ifSwib3BlcmF0b3IiOiJPUiJ9XQ==” hover_enabled=”0″ global_colors_info=”{}” sticky_enabled=”0″][/et_pb_image][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/05/i4r-logo-final.png” title_text=”i4r-logo-final” align=”center” disabled_on=”off|off|off” admin_label=”Image” _builder_version=”4.24.2″ _module_preset=”default” width=”100%” display_conditions=”W3siaWQiOiIyNDJjM2FmYy1jMjRmLTQ1OGItYTNlOS0xNzE5NDVmZmRhMTkiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJpc3AyMDAwIiwiYWRtaW5MYWJlbCI6ImlzcDIwMDAtdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” global_colors_info=”{}”][/et_pb_image][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9hdHRhY2htZW50Iiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjIzNzg0NSJ9fQ==@” url_new_window=”on” button_text=”Company Brochure” button_alignment=”center” disabled_on=”off|off|off” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ button_bg_color=”gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00″ button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_icon=”||fa||900″ button_icon_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ display_conditions=”W3siaWQiOiJmNWMxYmIyMi1jMGQxLTQyZWYtOGNkYi0zMGU2OTRhZDdiYzYiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJpc20zNjAwLWZhIiwiYWRtaW5MYWJlbCI6ImlzbTM2MDAtZmEtdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291%22:%91%22button_icon_color%22,%22button_text_color%22%93,%22gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00%22:%91%22button_bg_color%22%93}”][/et_pb_button][et_pb_button url_new_window=”on” button_text=”Company Brochure” button_alignment=”center” disabled_on=”on|on|on” _builder_version=”4.24.2″ _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ button_bg_color=”gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00″ button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_icon=”||fa||900″ button_icon_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ display_conditions=”W3siaWQiOiJmNWMxYmIyMi1jMGQxLTQyZWYtOGNkYi0zMGU2OTRhZDdiYzYiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJpc3AyMDAwIiwiYWRtaW5MYWJlbCI6ImlzcDIwMDAtdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” disabled=”on” locked=”off” global_colors_info=”{%22gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291%22:%91%22button_icon_color%22,%22button_text_color%22%93,%22gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00%22:%91%22button_bg_color%22%93}”][/et_pb_button][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9hdHRhY2htZW50Iiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjIzODY5OCJ9fQ==@” url_new_window=”on” button_text=”Company Brochure” button_alignment=”center” disabled_on=”off|off|off” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ button_bg_color=”gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00″ button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_icon=”||fa||900″ button_icon_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ display_conditions=”W3siaWQiOiJmNWMxYmIyMi1jMGQxLTQyZWYtOGNkYi0zMGU2OTRhZDdiYzYiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJpbXMiLCJhZG1pbkxhYmVsIjoiaW1zLXVybC1wYXJhbWV0ZXIiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn1d” hover_enabled=”0″ custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291%22:%91%22button_icon_color%22,%22button_text_color%22%93,%22gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00%22:%91%22button_bg_color%22%93}” sticky_enabled=”0″][/et_pb_button][et_pb_testimonial font_icon=”||fa||900″ admin_label=”Testimonial” _builder_version=”4.24.2″ _module_preset=”default” body_text_align=”center” body_font_size=”75%” body_line_height=”1.2em” body_font_size_tablet=”120%” body_font_size_phone=”100%” body_font_size_last_edited=”on|phone” locked=”off” global_colors_info=”{}”]
For more detailed information about the equipment and brand download the brochure.
