Insertion Model

Insertion for THT Solutions

[et_pb_section fb_built=”1″ _builder_version=”4.24.2″ _module_preset=”default” custom_padding=”0px||0px||false|false” global_colors_info=”{}”][et_pb_row _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”||0px||false|false” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.24.2″ _module_preset=”default” custom_padding=”0px||0px||false|false” global_colors_info=”{}”][lwp_divi_breadcrumbs home_text=”Solucinde” use_before_icon=”off” link_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” module_class=”breadcrumb-align” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” custom_css_free_form=”SELECTOR{|| display:inline-block;|| vertical-align:top;||}” global_colors_info=”{%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22link_color%22%93}”][/lwp_divi_breadcrumbs][et_pb_code admin_label=”custom bc” module_class=”custom-breadcrumb-align” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

[/et_pb_code][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fb_built=”1″ _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” global_colors_info=”{}”][et_pb_row _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”||||false|false” custom_padding=”||||false|false” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_code _builder_version=”4.24.2″ _module_preset=”default” custom_css_free_form=”selector{|| text-align:center;|| color: #002157;|| font-size: 200%;||}” global_colors_info=”{}”]

[/et_pb_code][/et_pb_column][/et_pb_row][/et_pb_section][et_pb_section fb_built=”1″ specialty=”on” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” global_colors_info=”{}”][et_pb_column type=”3_4″ specialty_columns=”3″ _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_row_inner admin_label=”Model 1″ module_id=”model1″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiI4MGIwYzc2ZS03ZmJiLTRiYmItOWIxMi01OGM3ZmEzNzUwYjUiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJ0aGltMy1hIiwiYWRtaW5MYWJlbCI6InRoaW0zLWEtdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/04/THIM3A.webp” title_text=”THIM3A” _builder_version=”4.24.2″ _module_preset=”default” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font_size=”80%” text_line_height=”1.4em” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}” global_colors_info=”{}”]

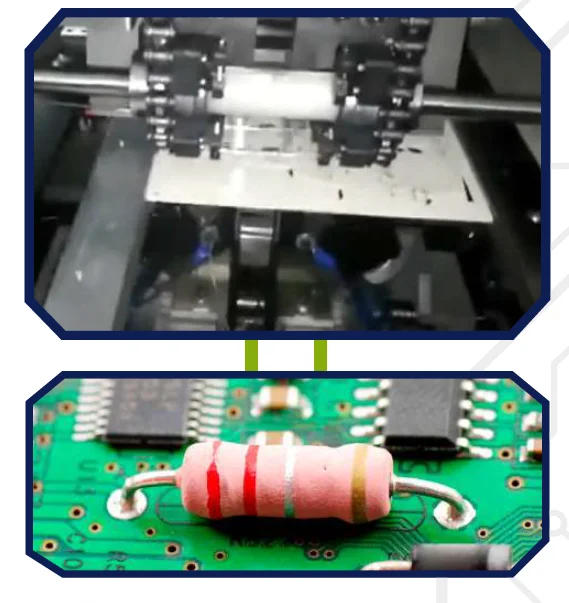

THIM3-A

In-line machine for automatic insertion of axial components and bridge wire. It can be configured from 15 to 100 stations.

Equipped with a vision system that allows the alignment and insertion of up to 22,000 components per hour at different angles (0°, 90°, 180°, 270°) and with a clinching unit adjustable in length and angle make it an ideal machine for an automatic process with SMEMA protocol.

[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”THIM3-A” sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” global_custom_title=”THIM3-A” use_url_query_parameters=”on” url_query_parameters=”model” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” custom_css_free_form=”

||

Temp. Range

||

Room Temperature -300°C

||

||

||

Max. Width of PCB

||

400mm Option:460mm

||

||

||

Component Height

||

TTop 30mm Bottom25mm

||

||

||

Conveyor Height

||

900±20 mm

||

||

||

Conveyor Speed Range

||

300-2000mm/min

||

||

||

No.of heating zones

||

Top 8/ Bottom 8

||

||

||

No.of cooling zones

||

Top 3/ Bottom3

||

||

||

Conveyor System

||

Rail+Mesh

||

||

||

Chain Structure

||

Dual-link avoid block

||

||

||

Width Adjustment

||

Electric adjustable

||

||

||

” locked=”off” global_colors_info=”{}”][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

  • Machine Size: L1700 x W2320 x H1593 mm
  • Machine Weight: 1800 kg
  • Insertion Angle: 5.5 – 18mm or 5 – 25 mm
  • Air Consumption: 0.2 m3/min
  • Component packaging method: Components must be in tape.
  • Component Lead Cutting: 1.2 – 2.2 mm
  • Hole Position Correction Method: Machine vision system, multi-point Mark vision correction.
  • Board Loading: Manual/Auto
  • Programming Function: Manual/Auto..
  • Power Supply: Sigle 220V / AC, 50/60HZ, 2KVA

[/et_pb_tab][et_pb_tab title=”Additional Information” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner admin_label=”Model 2″ module_id=”model2″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiIyMTFkNzkyYS1mODVlLTRlYzUtODNhMi1hNGFiYjI2MWJhYjQiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJ0aGltMy10IiwiYWRtaW5MYWJlbCI6InRoaW0zLXQtdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/04/THIM3T-2024.webp” title_text=”THIM3T” module_class=”img-product” _builder_version=”4.24.2″ _module_preset=”default” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font_size=”80%” text_line_height=”1.4em” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}selector{|| display:inline-block; || vertical-align:top;||}” global_colors_info=”{}”]

THIM3-T

The insertion machine has SMEMA protocol for an inline process. Each head is manufactured according to the drawing of the terminal that needs to be inserted, allows control of the placement angle, force measurement, automatic adjustment of conveyor and clinch unit, making it the most advanced option for the most demanding processes.

[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”THIM3-T” sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” global_custom_title=”THIM3-T” use_url_query_parameters=”on” url_query_parameters=”model” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” locked=”off” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” custom_css_free_form=”

||

Temp. Range

||

Room Temperature -300°C

||

||

||

Max. Width of PCB

||

400mm Option:460mm

||

||

||

Component Height

||

TTop 30mm Bottom25mm

||

||

||

Conveyor Height

||

900±20 mm

||

||

||

Conveyor Speed Range

||

300-2000mm/min

||

||

||

No.of heating zones

||

Top 8/ Bottom 8

||

||

||

No.of cooling zones

||

Top 3/ Bottom3

||

||

||

Conveyor System

||

Rail+Mesh

||

||

||

Chain Structure

||

Dual-link avoid block

||

||

||

Width Adjustment

||

Electric adjustable

||

||

||

” locked=”off” global_colors_info=”{}”][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

  • Machine Size: L1750 x W1350 x H1750 mm
  • Insertion Angle: 360° (increment 1°).
  • Air Pressure: 5-6kg/cm²
  • PCB Size: Max 380×280 Min50x50mm (Customized).
  • Number of insertion heads: 1 – 4 (Optional).
  • Material Supply Method: Bowl feeder, Packaging in rolls / continuos feeders.
  • Motion Accuracy: 0.001 mm/ pulse.
  • Programming Function: Online visual programming.
  • Communication interface: RS-232 (can be connected to MES system).
  • Power Supply: Sigle 220V / AC, 50/60HZ, 2KVA

[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner admin_label=”Model 2″ module_id=”model2″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiIyMTFkNzkyYS1mODVlLTRlYzUtODNhMi1hNGFiYjI2MWJhYjQiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJ0aGltMy1yIiwiYWRtaW5MYWJlbCI6InRoaW0zLXItdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/04/THIM3R.webp” title_text=”THIM3R” module_class=”img-product” _builder_version=”4.24.2″ _module_preset=”default” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font_size=”80%” text_line_height=”1.4em” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}” global_colors_info=”{}”]

THIM3-R

The radial insertion machine has SMEMA protocol for an inline process. It has the carrier-clip system with one, two, three and four spans variants to place a variety of taped components. It also includes a clinch unit.

It has a structure for mounting feeders at the back of the machine, which reduces floor space across the width of the machine.

[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”THIM3-R” sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” global_custom_title=”THIM3-R” use_url_query_parameters=”on” url_query_parameters=”model” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” locked=”off” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” custom_css_free_form=”

||

Temp. Range

||

Room Temperature -300°C

||

||

||

Max. Width of PCB

||

400mm Option:460mm

||

||

||

Component Height

||

TTop 30mm Bottom25mm

||

||

||

Conveyor Height

||

900±20 mm

||

||

||

Conveyor Speed Range

||

300-2000mm/min

||

||

||

No.of heating zones

||

Top 8/ Bottom 8

||

||

||

No.of cooling zones

||

Top 3/ Bottom3

||

||

||

Conveyor System

||

Rail+Mesh

||

||

||

Chain Structure

||

Dual-link avoid block

||

||

||

Width Adjustment

||

Electric adjustable

||

||

||

” locked=”off” global_colors_info=”{}”][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

  • Machine Size: L1992 x W1820 x H1593 mm
  • Feeder Dimension: 300 x 63 x 42 pcs
  • Inline Baord Feeding Height: 0.79 – 2.36 mm
  • Component packaging method: Components must be in tape pakage.
  • Component Lead Cutting: 1.5 +/- 0.3 mm or 2.0 +/- 0.3 mm
  • Feeder Station: 10/15/20/40/80 (options)
  • Board Size Available: 350 x 280
  • Air Supply: 0.6 – 0.8 Mpa
  • Hole position correction method: Machine vision system, multi-point MARK vision correction
  • Board Loading: Manual/Auto(Options)
  • Programming Function: Online editing.
  • Power Supply: 220V, AC (Single Phase) 50/60HZ, 2.0KVA

[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner admin_label=”Model 2″ module_id=”model2″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiIyMTFkNzkyYS1mODVlLTRlYzUtODNhMi1hNGFiYjI2MWJhYjQiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJ0aGltMy1wIiwiYWRtaW5MYWJlbCI6InRoaW0zLXAtdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/04/THIM3P.webp” title_text=”THIM3P” module_class=”img-product” _builder_version=”4.24.2″ _module_preset=”default” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font_size=”80%” text_line_height=”1.4em” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}” global_colors_info=”{}”]

THIM3-P

The insertion machine has SMEMA protocol for an inline process. Each head is manufactured according to the drawing of the pin that needs to be inserted, allows control of the placement angle, force measurement, automatic adjustment of conveyor and clinch unit, making it the most advanced option for the most demanding processes.

[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”THIM3-P” sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” global_custom_title=”THIM3-P” use_url_query_parameters=”on” url_query_parameters=”model” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” locked=”off” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” custom_css_free_form=”

||

Temp. Range

||

Room Temperature -300°C

||

||

||

Max. Width of PCB

||

400mm Option:460mm

||

||

||

Component Height

||

TTop 30mm Bottom25mm

||

||

||

Conveyor Height

||

900±20 mm

||

||

||

Conveyor Speed Range

||

300-2000mm/min

||

||

||

No.of heating zones

||

Top 8/ Bottom 8

||

||

||

No.of cooling zones

||

Top 3/ Bottom3

||

||

||

Conveyor System

||

Rail+Mesh

||

||

||

Chain Structure

||

Dual-link avoid block

||

||

||

Width Adjustment

||

Electric adjustable

||

||

||

” locked=”off” global_colors_info=”{}”][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

  • Machine Size: L1700 x W1300 x H1600 mm
  • Machine Weight: 1,200 Kg
  • PCB Size: 330 x 280 (Customized)
  • Number of Insertion Heads: 1-4 Optional
  • Terminal Thickness: 0.5-1.2 mm
  • Insertion Angle: 360° (increment 1°)
  • Feeding System: Tape feeder or Bowl feeder
    + feeding guide
  • Programming Function: Online visual programming,
    visual correction, Excel
  • Communication Interface: RS-232 (can be connected to
    MES system).

[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner admin_label=”Model 2″ module_id=”model2″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiIyMTFkNzkyYS1mODVlLTRlYzUtODNhMi1hNGFiYjI2MWJhYjQiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJ0aGltMy1vZjNzIiwiYWRtaW5MYWJlbCI6InRoaW0zLW9mM3MtdXJsLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/04/THIM3-OF3S.webp” title_text=”THIM3-OF3S” module_class=”img-product” _builder_version=”4.24.2″ _module_preset=”default” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font_size=”80%” text_line_height=”1.4em” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}” global_colors_info=”{}”]

THIM3-OF3S

In-line odd form component insertion machine with SMEMA protocol.

The THIM3-OF3S is an advanced odd component insertion machine designed for high-speed, high-precision operations. It integrates up to four heads for versatile component insertion (gripper or suction cups).

The machine can handle component feeding through various configurations of feeders (radial, axial, tray, tube and bowl feeder).

Equipped with a top vision system for auto-correction and flexible insertion (including palletized PCBs).

In addition, lower vision systems for pre-insertion pin checking ensure accurate placement.

The THIM3-OF3S is compatible with MES systems, making it ideal for large-scale automated production environments.

[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”THIM3-OF3S” sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” global_custom_title=”THIM3-OF3S” use_url_query_parameters=”on” url_query_parameters=”model” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” locked=”off” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” custom_css_free_form=”

||

Temp. Range

||

Room Temperature -300°C

||

||

||

Max. Width of PCB

||

400mm Option:460mm

||

||

||

Component Height

||

TTop 30mm Bottom25mm

||

||

||

Conveyor Height

||

900±20 mm

||

||

||

Conveyor Speed Range

||

300-2000mm/min

||

||

||

No.of heating zones

||

Top 8/ Bottom 8

||

||

||

No.of cooling zones

||

Top 3/ Bottom3

||

||

||

Conveyor System

||

Rail+Mesh

||

||

||

Chain Structure

||

Dual-link avoid block

||

||

||

Width Adjustment

||

Electric adjustable

||

||

||

” locked=”off” global_colors_info=”{}”][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]



[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

  • Machine Size: L1780 x W1500 x H1600 mm
  • Machine Weight: 1,800 Kg
  • Air Supply: 0.55 +/- 0.1 Mpa
  • Air Consumption: 0.2 m3/min
  • Calibration: Machine vision system, multi-point Mark vision correction
  • Programming: Manual/Auto
  • Data Input: USB
  • Board Size Avaliable: 330 x 280 (Customized).
  • Inline Baord Feeding Height: 900 +/- 20 mm
  • Board Thickness: 0.79 – 2.36 mm
  • Component Type: Components must in tape pakage.
  • Power Supply: 220V, AC 50/60 HZ, 1000VA

[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner admin_label=”Model 2″ module_id=”model2″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiIyMTFkNzkyYS1mODVlLTRlYzUtODNhMi1hNGFiYjI2MWJhYjQiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJqbS0yMCIsImFkbWluTGFiZWwiOiJqbS0yMC1wYXJhbWV0ZXIiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn1d” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2025/11/JM-20_hidarihukan.webp” title_text=”JM-20_hidarihukan” module_class=”img-product” _builder_version=”4.24.2″ _module_preset=”default” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font_size=”80%” text_line_height=”1.4em” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}” global_colors_info=”{}”]

JM-20

High-Speed, Compact Hybrid Placement System

The JUKI JM-20 is a compact hybrid placement machine combining mechanical insertion and flexible component handling in one platform. It supports radial, axial, and odd-form components, as well as connectors and large devices, allowing both SMT and THT operations in the same line. With advanced vision alignment, servo-driven precision, and user-friendly programming, the JM-20 achieves high productivity with minimal changeover time, ideal for high-mix, low-volume manufacturing.

[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”JM-20″ sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” global_custom_title=”THIM3-OF3S” use_url_query_parameters=”on” url_query_parameters=”model” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” locked=”off” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” hover_enabled=”0″ custom_css_free_form=”

||

Temp. Range

||

Room Temperature -300°C

||

||

||

Max. Width of PCB

||

400mm Option:460mm

||

||

||

Component Height

||

TTop 30mm Bottom25mm

||

||

||

Conveyor Height

||

900±20 mm

||

||

||

Conveyor Speed Range

||

300-2000mm/min

||

||

||

No.of heating zones

||

Top 8/ Bottom 8

||

||

||

No.of cooling zones

||

Top 3/ Bottom3

||

||

||

Conveyor System

||

Rail+Mesh

||

||

||

Chain Structure

||

Dual-link avoid block

||

||

||

Width Adjustment

||

Electric adjustable

||

||

||

” locked=”off” global_colors_info=”{}” sticky_enabled=”0″][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

Key Features:

      • Hybrid system for THT, odd-form, and mechanical insertion.
      • Compatible with both SMT and through-hole production lines.
      • High-precision insertion with servo-controlled XY axes.
      • Multi-nozzle head for different component shapes and sizes.
      • Integrated vision system for accurate positioning.
      • Compact footprint and easy line integration.
      • Automatic feeder recognition and quick-change tooling.
      • Easy operation and maintenance via intuitive interface.

Technical Specifications:

      • Supported components: Radial, Axial, Odd-form, Connectors
      • Component size: up to 50 × 50 × 100 mm (depending on nozzle)
      • PCB size: Max 460 × 400 mm
      • Insertion accuracy: ±0.05 mm
      • Insertion speed: up to 0.6 s/component
      • Insertion angle: 0°–360° (programmable)
      • Feeder capacity: up to 60 positions (configurable)
      • Dimensions: L 1,200 × W 1,500 × H 1,450 mm
      • Weight: Approx. 850 kg
      • Power supply: AC 200–230 V, 3-phase, 50/60 Hz

[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner admin_label=”Model 2″ module_id=”model2″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiIyMTFkNzkyYS1mODVlLTRlYzUtODNhMi1hNGFiYjI2MWJhYjQiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJqbS01MCIsImFkbWluTGFiZWwiOiJqbS01MC1wYXJhbWV0ZXIiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn1d” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2025/11/JM-50_ic.webp” title_text=”JM-50_ic” module_class=”img-product” _builder_version=”4.24.2″ _module_preset=”default” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font_size=”80%” text_line_height=”1.4em” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}” global_colors_info=”{}”]

JM-50

High-Speed, Compact Hybrid Placement System

The JM-50 expands JUKI’s hybrid platform concept by offering faster placement speed, larger board handling, and more automation for complex assemblies. It is designed for odd-form and mechanical component insertion while seamlessly integrating with SMT lines. Equipped with a multi-function head, component recognition cameras, and an automatic nozzle changer, the JM-50 ensures high-quality insertion with minimal downtime.

[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”JM-50″ sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” global_custom_title=”THIM3-OF3S” use_url_query_parameters=”on” url_query_parameters=”model” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” locked=”off” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” hover_enabled=”0″ custom_css_free_form=”

||

Temp. Range

||

Room Temperature -300°C

||

||

||

Max. Width of PCB

||

400mm Option:460mm

||

||

||

Component Height

||

TTop 30mm Bottom25mm

||

||

||

Conveyor Height

||

900±20 mm

||

||

||

Conveyor Speed Range

||

300-2000mm/min

||

||

||

No.of heating zones

||

Top 8/ Bottom 8

||

||

||

No.of cooling zones

||

Top 3/ Bottom3

||

||

||

Conveyor System

||

Rail+Mesh

||

||

||

Chain Structure

||

Dual-link avoid block

||

||

||

Width Adjustment

||

Electric adjustable

||

||

||

” locked=”off” global_colors_info=”{}” sticky_enabled=”0″][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

Key Features:

      • Supports odd-form, connectors, relays, and mechanical parts.
      • Hybrid head enables both pick-and-place and mechanical insertion.
      • Automatic tool changer and multi-nozzle system.
      • Wide PCB size range and high load capacity.
      • Vision-guided insertion with 3D correction and fiducial alignment.
      • Flexible feeder configurations for tape, stick, or tray components.
      • MES connectivity and full traceability.
      • Designed for quick setup and smooth integration in mixed-technology lines.

Technical Specifications:

      • PCB size: 50 × 50 mm to 510 × 460 mm
      • Component height: Max 120 mm
      • Component weight: Max 150 g
      • Placement accuracy: ±0.05 mm (with vision)
      • Insertion angle: 0°–360°
      • Feeder capacity: Up to 80 feeders (configurable)
      • Throughput: up to 4,000 CPH (components/hour)
      • Power supply: AC 200–230 V, 3-phase, 50/60 Hz
      • Dimensions: L 1,450 × W 1,600 × H 1,500 mm
      • Weight: Approx. 950 kg
      •

[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner admin_label=”Model 2″ module_id=”model2″ _builder_version=”4.24.2″ _module_preset=”default” background_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” display_conditions=”W3siaWQiOiIyMTFkNzkyYS1mODVlLTRlYzUtODNhMi1hNGFiYjI2MWJhYjQiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJqbS0xMDAiLCJhZG1pbkxhYmVsIjoiam0tMTAwLXBhcmFtZXRlciIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22background_color%22%93}”][et_pb_column_inner saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2025/11/JM-100-Naname_0523-1.webp” title_text=”JM-100-Naname_0523-1″ module_class=”img-product” _builder_version=”4.24.2″ _module_preset=”default” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| width:50% !important;|| max-width:50% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| width:100% !important;|| max-width:100% !important;|| }||}” global_colors_info=”{}”][/et_pb_image][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font_size=”80%” text_line_height=”1.4em” header_3_font=”|600|||||||” header_3_font_size=”100%” width=”50%” max_width=”50%” custom_css_free_form=”@media (min-width: 700px) {|| selector{|| margin-right:2% !important;|| width:48% !important;|| max-width:48% !important;|| display:inline-block !important; || vertical-align:middle !important;|| }||}||@media (max-width: 400px) {|| selector{|| margin:auto !important;|| padding:0px !important;|| width:90% !important;|| display:block !important;|| max-width:90% !important;|| font-size:100% !important;|| }||}” global_colors_info=”{}”]

JM-100

High-Performance Odd-Form and Mechanical Insertion System

The JM-100 is JUKI’s flagship hybrid inserter, engineered for high-speed, high-accuracy placement of odd-form and mechanical components. It can insert a wide range of devices including large connectors, heat sinks, coils, and custom parts. Designed for seamless integration with SMT lines, the JM-100 delivers robust mechanical handling, automatic changeover, and superior vision-based alignment, ideal for automotive, industrial, and power electronics.

[/et_pb_text][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjExNiJ9fQ==@” button_text=”Request a Quote” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-e4282373-84ea-4132-b6c4-146429ba246c” button_bg_color=”gcid-10dbde15-e23f-4d7b-aa61-17375808548d” button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_use_icon=”off” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-e4282373-84ea-4132-b6c4-146429ba246c%22:%91%22button_text_color%22%93,%22gcid-10dbde15-e23f-4d7b-aa61-17375808548d%22:%91%22button_bg_color%22%93,%22gcid-1b367c08-2ce9-40f0-b9a6-3411dedcfdfd%22:%91%22button_bg_color__hover%22%93}” button_bg_color__hover_enabled=”on|hover” button_bg_color__hover=”#002157″ button_bg_enable_color__hover=”on”][/et_pb_button][dssb_sharing_buttons icon_placement=”icon” icon_width=”fixed” alignment=”right” use_custom_icon_size=”on” icon_bg=”RGBA(255,255,255,0)” use_sharing_title=”on” sharing_title=”JM-100″ sharing_title_inline=”on” use_global_sharing=”on” global_sharing_title=”custom_title” global_custom_title=”THIM3-OF3S” use_url_query_parameters=”on” url_query_parameters=”model” _builder_version=”4.24.2″ _module_preset=”default” sharing_title_text_color=”RGBA(255,255,255,0)” border_radii_main=”on|100%|100%|100%|100%” border_radii_icon=”on||||” locked=”off” global_colors_info=”{}”][dssb_sharing_button social_network=”copy” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”twitter” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”whatsapp” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][dssb_sharing_button social_network=”email” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][/dssb_sharing_button][/dssb_sharing_buttons][et_pb_tabs _builder_version=”4.24.2″ _module_preset=”default” body_font_size=”80%” hover_enabled=”0″ custom_css_free_form=”

||

Temp. Range

||

Room Temperature -300°C

||

||

||

Max. Width of PCB

||

400mm Option:460mm

||

||

||

Component Height

||

TTop 30mm Bottom25mm

||

||

||

Conveyor Height

||

900±20 mm

||

||

||

Conveyor Speed Range

||

300-2000mm/min

||

||

||

No.of heating zones

||

Top 8/ Bottom 8

||

||

||

No.of cooling zones

||

Top 3/ Bottom3

||

||

||

Conveyor System

||

Rail+Mesh

||

||

||

Chain Structure

||

Dual-link avoid block

||

||

||

Width Adjustment

||

Electric adjustable

||

||

||

” locked=”off” global_colors_info=”{}” sticky_enabled=”0″][et_pb_tab title=”Video” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

[/et_pb_tab][et_pb_tab title=”Specifications” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

Key Features:

      • All-in-one odd-form, mechanical, and THT insertion platform.
      • Dual head structure for simultaneous handling of multiple component types.
      • Advanced vision and 3D alignment for high accuracy.
      • Automatic nozzle changer and tool recognition.
      • Compatible with feeders, trays, and bowl supply units.
      • Powerful servo-motor system for fast, precise motion.
      • Optional press-fit, clinching, or screw insertion modules.
      • Full MES integration and production traceability.
      • Optimized for continuous operation with minimal downtime.

Technical Specifications:

      • PCB size: 50 × 50 mm to 510 × 460 mm
      • Component height: Up to 150 mm
      • Placement accuracy: ±0.05 mm (with vision)
      • Throughput: up to 5,000 CPH (components/hour)
      • Insertion angle: 0°–360° (programmable)
      • Feeder capacity: Up to 90 feeders (configurable)
      • Power supply: AC 200–230 V, 3-phase, 50/60 Hz
      • Dimensions: L 1,500 × W 1,700 × H 1,500 mm
      • Weight: Approx. 1,000 kg

[/et_pb_tab][/et_pb_tabs][/et_pb_column_inner][/et_pb_row_inner][et_pb_row_inner column_structure=”1_2,1_2″ admin_label=”Botones prev next” module_class=”two-col-mob” _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_column_inner type=”1_2″ saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjIzNTYyMCJ9fQ==@” button_text=”C&F” disabled_on=”off|off|off” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ button_icon=”4||divi||400″ button_icon_placement=”left” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;|| margin-right:50%;||}” global_colors_info=”{%22gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291%22:%91%22button_text_color%22%93}”][/et_pb_button][/et_pb_column_inner][et_pb_column_inner type=”1_2″ saved_specialty_column_type=”3_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9wYWdlIiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjU1NiJ9fQ==@” button_text=”Component Taping” button_alignment=”right” disabled_on=”off|off|off” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;|| margin-left:50%;||}” locked=”off” global_colors_info=”{%22gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291%22:%91%22button_text_color%22%93}”][/et_pb_button][/et_pb_column_inner][/et_pb_row_inner][/et_pb_column][et_pb_column type=”1_4″ admin_label=”Columna” _builder_version=”4.16″ custom_padding=”|||” global_colors_info=”{}” custom_padding__hover=”|||”][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/03/thim3.png” title_text=”thim3″ align=”center” disabled_on=”off|off|off” _builder_version=”4.24.2″ _module_preset=”default” width=”100%” display_conditions=”W3siaWQiOiI3ZWU4ZDNmMS1jNWQ2LTQwNTUtODFmYy1hZDM4ODA2MzBhNDIiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJ0aGltMy1vZjNzIiwiYWRtaW5MYWJlbCI6InRoaW0zLW9mM3MiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn0seyJpZCI6IjIyODkzMzQwLTIwOTctNGIwMy04NGRmLWExNGUzZDIzYzljOSIsImNvbmRpdGlvbiI6InVybFBhcmFtZXRlciIsImNvbmRpdGlvblNldHRpbmdzIjp7InNlbGVjdFVybFBhcmFtZXRlciI6InNwZWNpZmljVXJsUGFyYW1ldGVyIiwidXJsUGFyYW1ldGVyTmFtZSI6Im1vZGVsIiwiZGlzcGxheVJ1bGUiOiJlcXVhbHMiLCJ1cmxQYXJhbWV0ZXJWYWx1ZSI6InRoaW0zLXQiLCJhZG1pbkxhYmVsIjoidGhpbTMtdCIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifSx7ImlkIjoiMThmNzA0NDUtNjNhOC00ZWU1LWIxMGYtMzY0MzY0NWI2MDk2IiwiY29uZGl0aW9uIjoidXJsUGFyYW1ldGVyIiwiY29uZGl0aW9uU2V0dGluZ3MiOnsic2VsZWN0VXJsUGFyYW1ldGVyIjoic3BlY2lmaWNVcmxQYXJhbWV0ZXIiLCJ1cmxQYXJhbWV0ZXJOYW1lIjoibW9kZWwiLCJkaXNwbGF5UnVsZSI6ImVxdWFscyIsInVybFBhcmFtZXRlclZhbHVlIjoidGhpbTMtciIsImFkbWluTGFiZWwiOiJ0aGltMy1yIiwiZW5hYmxlQ29uZGl0aW9uIjoib24ifSwib3BlcmF0b3IiOiJPUiJ9LHsiaWQiOiI4OTc2YWQ1ZC02MTdmLTRiOGYtODcwYy1lYmQ2NGVkODE5NGMiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJ0aGltMy1wIiwiYWRtaW5MYWJlbCI6InRoaW0zLXAiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn0seyJpZCI6ImM0ZGJjNDhjLTBhMTMtNDRhNi1hNzgyLTkxYTZiZTI2N2UwZCIsImNvbmRpdGlvbiI6InVybFBhcmFtZXRlciIsImNvbmRpdGlvblNldHRpbmdzIjp7InNlbGVjdFVybFBhcmFtZXRlciI6InNwZWNpZmljVXJsUGFyYW1ldGVyIiwidXJsUGFyYW1ldGVyTmFtZSI6Im1vZGVsIiwiZGlzcGxheVJ1bGUiOiJlcXVhbHMiLCJ1cmxQYXJhbWV0ZXJWYWx1ZSI6InRoaW0zLWEiLCJhZG1pbkxhYmVsIjoidGhpbTMtYSIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” global_colors_info=”{}”][/et_pb_image][et_pb_image src=”https://solucinde.com/wp-content/uploads/2024/03/jukilogo2.png” title_text=”Juki” align=”center” disabled_on=”off|off|off” _builder_version=”4.24.2″ _module_preset=”default” width=”100%” display_conditions=”W3siaWQiOiI3ZWU4ZDNmMS1jNWQ2LTQwNTUtODFmYy1hZDM4ODA2MzBhNDIiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJqbS0yMCIsImFkbWluTGFiZWwiOiJqbS0yMCIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifSx7ImlkIjoiM2Q2ZGU0NmQtM2JhMy00ZDkwLTk5OWYtZmQxZjY0MWFmM2Y0IiwiY29uZGl0aW9uIjoidXJsUGFyYW1ldGVyIiwiY29uZGl0aW9uU2V0dGluZ3MiOnsic2VsZWN0VXJsUGFyYW1ldGVyIjoic3BlY2lmaWNVcmxQYXJhbWV0ZXIiLCJ1cmxQYXJhbWV0ZXJOYW1lIjoibW9kZWwiLCJkaXNwbGF5UnVsZSI6ImVxdWFscyIsInVybFBhcmFtZXRlclZhbHVlIjoiam0tNTAiLCJhZG1pbkxhYmVsIjoiam0tNTAiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn0seyJpZCI6IjE5ODQyZDUxLTdlZGYtNDM1NS1iNDZkLTQwMzk1NGQyZWUxNCIsImNvbmRpdGlvbiI6InVybFBhcmFtZXRlciIsImNvbmRpdGlvblNldHRpbmdzIjp7InNlbGVjdFVybFBhcmFtZXRlciI6InNwZWNpZmljVXJsUGFyYW1ldGVyIiwidXJsUGFyYW1ldGVyTmFtZSI6Im1vZGVsIiwiZGlzcGxheVJ1bGUiOiJlcXVhbHMiLCJ1cmxQYXJhbWV0ZXJWYWx1ZSI6ImptLTEwMCIsImFkbWluTGFiZWwiOiJqbS0xMDAiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn1d” global_colors_info=”{}”][/et_pb_image][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9hdHRhY2htZW50Iiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjIzNTIwMSJ9fQ==@” url_new_window=”on” button_text=”Company Brochure” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ button_bg_color=”gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00″ button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_icon=”||fa||900″ button_icon_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ display_conditions=”W3siaWQiOiIwMTQyYWNmYy0xMTY1LTRlNWYtYTAyYS1mYTk3ODIwYWZkYWEiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJ0aGltMy1vZjNzIiwiYWRtaW5MYWJlbCI6InRoaW0zLW9mM3MiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn0seyJpZCI6IjBlYjRmNWI4LWM5MjAtNGQxMi1hZTNkLTRhZTVkNzkxNjgyYyIsImNvbmRpdGlvbiI6InVybFBhcmFtZXRlciIsImNvbmRpdGlvblNldHRpbmdzIjp7InNlbGVjdFVybFBhcmFtZXRlciI6InNwZWNpZmljVXJsUGFyYW1ldGVyIiwidXJsUGFyYW1ldGVyTmFtZSI6Im1vZGVsIiwiZGlzcGxheVJ1bGUiOiJlcXVhbHMiLCJ1cmxQYXJhbWV0ZXJWYWx1ZSI6InRoaW0zLXQiLCJhZG1pbkxhYmVsIjoidGhpbTMtdCIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifSx7ImlkIjoiOWU1MmZjNTQtYmJlNi00ZGJlLTlhZjctODY1M2YxMGM3ZTBhIiwiY29uZGl0aW9uIjoidXJsUGFyYW1ldGVyIiwiY29uZGl0aW9uU2V0dGluZ3MiOnsic2VsZWN0VXJsUGFyYW1ldGVyIjoic3BlY2lmaWNVcmxQYXJhbWV0ZXIiLCJ1cmxQYXJhbWV0ZXJOYW1lIjoibW9kZWwiLCJkaXNwbGF5UnVsZSI6ImVxdWFscyIsInVybFBhcmFtZXRlclZhbHVlIjoidGhpbTMtciIsImFkbWluTGFiZWwiOiJ0aGltMy1yIiwiZW5hYmxlQ29uZGl0aW9uIjoib24ifSwib3BlcmF0b3IiOiJPUiJ9LHsiaWQiOiJkYzc5MzdhOC1mMjczLTQxNGEtODg0Ny1hNzY2NDQ5Mjg0YzUiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJ0aGltMy1wIiwiYWRtaW5MYWJlbCI6InRoaW0zLXAiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn0seyJpZCI6ImRmNDZjNWI1LThiZmUtNGQxZi05NDRhLWEyZWMyYzE2MjU4OSIsImNvbmRpdGlvbiI6InVybFBhcmFtZXRlciIsImNvbmRpdGlvblNldHRpbmdzIjp7InNlbGVjdFVybFBhcmFtZXRlciI6InNwZWNpZmljVXJsUGFyYW1ldGVyIiwidXJsUGFyYW1ldGVyTmFtZSI6Im1vZGVsIiwiZGlzcGxheVJ1bGUiOiJlcXVhbHMiLCJ1cmxQYXJhbWV0ZXJWYWx1ZSI6InRoaW0zLWEiLCJhZG1pbkxhYmVsIjoidGhpbTMtYSIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifV0=” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291%22:%91%22button_icon_color%22,%22button_text_color%22%93,%22gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00%22:%91%22button_bg_color%22%93}”][/et_pb_button][et_pb_button button_url=”@ET-DC@eyJkeW5hbWljIjp0cnVlLCJjb250ZW50IjoicG9zdF9saW5rX3VybF9hdHRhY2htZW50Iiwic2V0dGluZ3MiOnsicG9zdF9pZCI6IjIzOTE0OCJ9fQ==@” url_new_window=”on” button_text=”Company Brochure” button_alignment=”center” _builder_version=”4.24.2″ _dynamic_attributes=”button_url” _module_preset=”default” custom_button=”on” button_text_size=”20px” button_text_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ button_bg_color=”gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00″ button_border_color=”RGBA(255,255,255,0)” button_border_radius=”3px” button_icon=”||fa||900″ button_icon_color=”gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291″ display_conditions=”W3siaWQiOiIwMTQyYWNmYy0xMTY1LTRlNWYtYTAyYS1mYTk3ODIwYWZkYWEiLCJjb25kaXRpb24iOiJ1cmxQYXJhbWV0ZXIiLCJjb25kaXRpb25TZXR0aW5ncyI6eyJzZWxlY3RVcmxQYXJhbWV0ZXIiOiJzcGVjaWZpY1VybFBhcmFtZXRlciIsInVybFBhcmFtZXRlck5hbWUiOiJtb2RlbCIsImRpc3BsYXlSdWxlIjoiZXF1YWxzIiwidXJsUGFyYW1ldGVyVmFsdWUiOiJqbS0yMCIsImFkbWluTGFiZWwiOiJqbS0yMCIsImVuYWJsZUNvbmRpdGlvbiI6Im9uIn0sIm9wZXJhdG9yIjoiT1IifSx7ImlkIjoiODg1NzllNmYtNTdlMC00NjIwLWIyOWQtN2VhNGE5YzdmNmE4IiwiY29uZGl0aW9uIjoidXJsUGFyYW1ldGVyIiwiY29uZGl0aW9uU2V0dGluZ3MiOnsic2VsZWN0VXJsUGFyYW1ldGVyIjoic3BlY2lmaWNVcmxQYXJhbWV0ZXIiLCJ1cmxQYXJhbWV0ZXJOYW1lIjoibW9kZWwiLCJkaXNwbGF5UnVsZSI6ImVxdWFscyIsInVybFBhcmFtZXRlclZhbHVlIjoiam0tNTAiLCJhZG1pbkxhYmVsIjoiam0tNTAiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn0seyJpZCI6IjNiMjVlNDg2LWRmYjYtNDdmOS04OGUxLThmYTZlZTY4ZDEzNCIsImNvbmRpdGlvbiI6InVybFBhcmFtZXRlciIsImNvbmRpdGlvblNldHRpbmdzIjp7InNlbGVjdFVybFBhcmFtZXRlciI6InNwZWNpZmljVXJsUGFyYW1ldGVyIiwidXJsUGFyYW1ldGVyTmFtZSI6Im1vZGVsIiwiZGlzcGxheVJ1bGUiOiJlcXVhbHMiLCJ1cmxQYXJhbWV0ZXJWYWx1ZSI6ImptLTEwMCIsImFkbWluTGFiZWwiOiJqbS0xMDAiLCJlbmFibGVDb25kaXRpb24iOiJvbiJ9LCJvcGVyYXRvciI6Ik9SIn1d” custom_css_free_form=”selector{|| display:inline-block; || vertical-align:middle;||}” locked=”off” global_colors_info=”{%22gcid-fb1ed9ea-eaab-4c58-a65b-4a87815fd291%22:%91%22button_icon_color%22,%22button_text_color%22%93,%22gcid-40182c3b-6906-4abd-b4d5-fc53b0275d00%22:%91%22button_bg_color%22%93}”][/et_pb_button][et_pb_testimonial font_icon=”||fa||900″ _builder_version=”4.24.2″ _module_preset=”default” body_text_align=”center” body_font_size=”75%” body_line_height=”1.2em” body_font_size_tablet=”120%” body_font_size_phone=”100%” body_font_size_last_edited=”on|phone” locked=”off” global_colors_info=”{}”]

For more detailed information about the equipment and brand download the brochure.

[/et_pb_testimonial][et_pb_text _builder_version=”4.24.2″ _module_preset=”default” text_font=”|700|||||||” text_font_size=”100%” custom_margin=”||0px||false|false” custom_padding=”||0px||false|false” global_colors_info=”{}”]

Other models:

[/et_pb_text][et_pb_code module_class=”dl-v-menu” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” custom_css_free_form=”selector:hover{|| cursor:pointer;||}” global_colors_info=”{}”]THIM3-OF3S var x = document.getElementById(“model1”); if (x.style.display === “none”) { //x.style.display = “block”; jQuery(“#model1”).show(100); jQuery(“#model2”).hide(100); jQuery(“#model3”).hide(100); jQuery(“#model4”).hide(100); jQuery(“#model5”).hide(100); jQuery(“#breadcrumbcustom”).html(” » RTT-31s”); } $([document.documentElement, document.body]).animate({ scrollTop: $(“.entry-title”).offset().top }, 200); } –>[/et_pb_code][et_pb_code module_class=”dl-v-menu” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” custom_css_free_form=”selector:hover{|| cursor:pointer;||}” global_colors_info=”{}”]THIM3-T var x = document.getElementById(“model1”); if (x.style.display === “none”) { //x.style.display = “block”; jQuery(“#model1”).show(100); jQuery(“#model2”).hide(100); jQuery(“#model3”).hide(100); jQuery(“#model4”).hide(100); jQuery(“#model5”).hide(100); jQuery(“#breadcrumbcustom”).html(” » RTT-31s”); } $([document.documentElement, document.body]).animate({ scrollTop: $(“.entry-title”).offset().top }, 200); } –>[/et_pb_code][et_pb_code module_class=”dl-v-menu” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” custom_css_free_form=”selector:hover{|| cursor:pointer;||}” global_colors_info=”{}”]THIM3-R var x = document.getElementById(“model1”); if (x.style.display === “none”) { //x.style.display = “block”; jQuery(“#model1”).show(100); jQuery(“#model2”).hide(100); jQuery(“#model3”).hide(100); jQuery(“#model4”).hide(100); jQuery(“#model5”).hide(100); jQuery(“#breadcrumbcustom”).html(” » RTT-31s”); } $([document.documentElement, document.body]).animate({ scrollTop: $(“.entry-title”).offset().top }, 200); } –>[/et_pb_code][et_pb_code module_class=”dl-v-menu” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” custom_css_free_form=”selector:hover{|| cursor:pointer;||}” global_colors_info=”{}”]THIM3-P var x = document.getElementById(“model1”); if (x.style.display === “none”) { //x.style.display = “block”; jQuery(“#model1”).show(100); jQuery(“#model2”).hide(100); jQuery(“#model3”).hide(100); jQuery(“#model4”).hide(100); jQuery(“#model5”).hide(100); jQuery(“#breadcrumbcustom”).html(” » RTT-31s”); } $([document.documentElement, document.body]).animate({ scrollTop: $(“.entry-title”).offset().top }, 200); } –>[/et_pb_code][et_pb_code module_class=”dl-v-menu” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” custom_css_free_form=”selector:hover{|| cursor:pointer;||}” global_colors_info=”{}”]THIM3-A var x = document.getElementById(“model1”); if (x.style.display === “none”) { //x.style.display = “block”; jQuery(“#model1”).show(100); jQuery(“#model2”).hide(100); jQuery(“#model3”).hide(100); jQuery(“#model4”).hide(100); jQuery(“#model5”).hide(100); jQuery(“#breadcrumbcustom”).html(” » RTT-31s”); } $([document.documentElement, document.body]).animate({ scrollTop: $(“.entry-title”).offset().top }, 200); } –>[/et_pb_code][et_pb_code module_class=”dl-v-menu” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” custom_css_free_form=”selector:hover{|| cursor:pointer;||}” global_colors_info=”{}”]JM-20 var x = document.getElementById(“model1”); if (x.style.display === “none”) { //x.style.display = “block”; jQuery(“#model1”).show(100); jQuery(“#model2”).hide(100); jQuery(“#model3”).hide(100); jQuery(“#model4”).hide(100); jQuery(“#model5”).hide(100); jQuery(“#breadcrumbcustom”).html(” » RTT-31s”); } $([document.documentElement, document.body]).animate({ scrollTop: $(“.entry-title”).offset().top }, 200); } –>[/et_pb_code][et_pb_code module_class=”dl-v-menu” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” custom_css_free_form=”selector:hover{|| cursor:pointer;||}” global_colors_info=”{}”]JM-50 var x = document.getElementById(“model1”); if (x.style.display === “none”) { //x.style.display = “block”; jQuery(“#model1”).show(100); jQuery(“#model2”).hide(100); jQuery(“#model3”).hide(100); jQuery(“#model4”).hide(100); jQuery(“#model5”).hide(100); jQuery(“#breadcrumbcustom”).html(” » RTT-31s”); } $([document.documentElement, document.body]).animate({ scrollTop: $(“.entry-title”).offset().top }, 200); } –>[/et_pb_code][et_pb_code module_class=”dl-v-menu” _builder_version=”4.24.2″ _module_preset=”default” custom_margin=”0px||0px||false|false” custom_padding=”0px||0px||false|false” custom_css_free_form=”selector:hover{|| cursor:pointer;||}” global_colors_info=”{}”]JM-100 var x = document.getElementById(“model1”); if (x.style.display === “none”) { //x.style.display = “block”; jQuery(“#model1”).show(100); jQuery(“#model2”).hide(100); jQuery(“#model3”).hide(100); jQuery(“#model4”).hide(100); jQuery(“#model5”).hide(100); jQuery(“#breadcrumbcustom”).html(” » RTT-31s”); } $([document.documentElement, document.body]).animate({ scrollTop: $(“.entry-title”).offset().top }, 200); } –>[/et_pb_code][/et_pb_column][/et_pb_section][et_pb_section fb_built=”1″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_row disabled_on=”on|on|on” _builder_version=”4.24.2″ _module_preset=”default” disabled=”on” global_colors_info=”{}”][et_pb_column type=”4_4″ _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”][et_pb_code _builder_version=”4.24.2″ _module_preset=”default” global_colors_info=”{}”]

– JTR-800/JTR-800-N

Specifications
Dimensions (LxWxH) 5520x1430x1530mm
Temp. Range Room Temperature -300°C
Max. Width of PCB 400mm Option:460mm
Component Height TTop 30mm Bottom25mm
Conveyor Height 900±20 mm
Conveyor Speed Range 300-2000mm/min
No.of heating zones Top 8/ Bottom 8
No.of cooling zones Top 3/ Bottom3
Conveyor System Rail+Mesh
Chain Structure Dual-link avoid block
Width Adjustment Electric adjustable

– JTR-1000/JTR-1000-N

Specifications
Dimensions (LxWxH) 6300x1430x1530mm
Temp. Range Room Temperature -300°C
Max. Width of PCB 400mm Option:460mm
Component Height Top 30mm Bottom25mm
Conveyor Height 900±20 mm
Conveyor Speed Range 300-2000mm/min
No.of heating zones Top 10/ Bottom 10
No.of cooling zones Top 3/ Bottom3
Conveyor System Rail+Mesh
Chain Structure Dual-link avoid block
Width Adjustment Electric adjustable

– JTR-1200/JTR-1200-N

Specifications
Dimensions (LxWxH) 7050x1430x1530mm
Temp. Range Room Temperature -300°C
Max. Width of PCB 400mm Option:460mm
Component Height Top 30mm Bottom25mm
Conveyor Height 900±20 mm
Conveyor Speed Range 300-2000mm/min
No.of heating zones Top 12/ Bottom 12
No.of cooling zones Top 3/ Bottom3
Conveyor System Rail+Mesh
Chain Structure Dual-link avoid block
Width Adjustment Electric adjustable



[/et_pb_code][/et_pb_column][/et_pb_row][/et_pb_section]
